Axial Incremental

Magnetic Rings

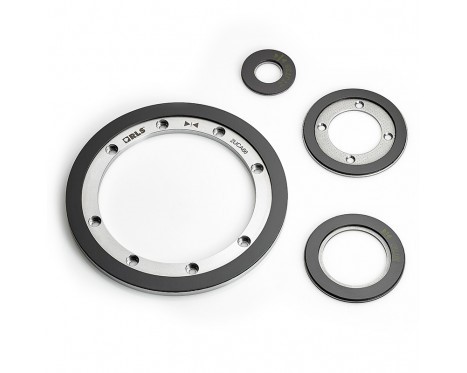

The robust RLS axial magnetic incremental rings consist of an elastoferrite layer and a stainless steel hub. The elasto-ferrite layer is magnetised with 2 mm long alternating magnetic poles, which form an incremental magnetic pattern.

A unique reference mark can also be added to the incremental magnetic pattern.

Benefits

  • Non-contact technology
  • Compatible with RLS LM and RLS RoLin family readheads
  • High speed operation
  • Easy mounting
  • Different shaft diameters available
  • Excellent resistance to dirt and dust
  • Unique or periodic reference mark
